Joyo JPA-863【代Call貨VAN送貨 運費到付】

Joyo JPA-863【代Call貨VAN送貨 運費到付】

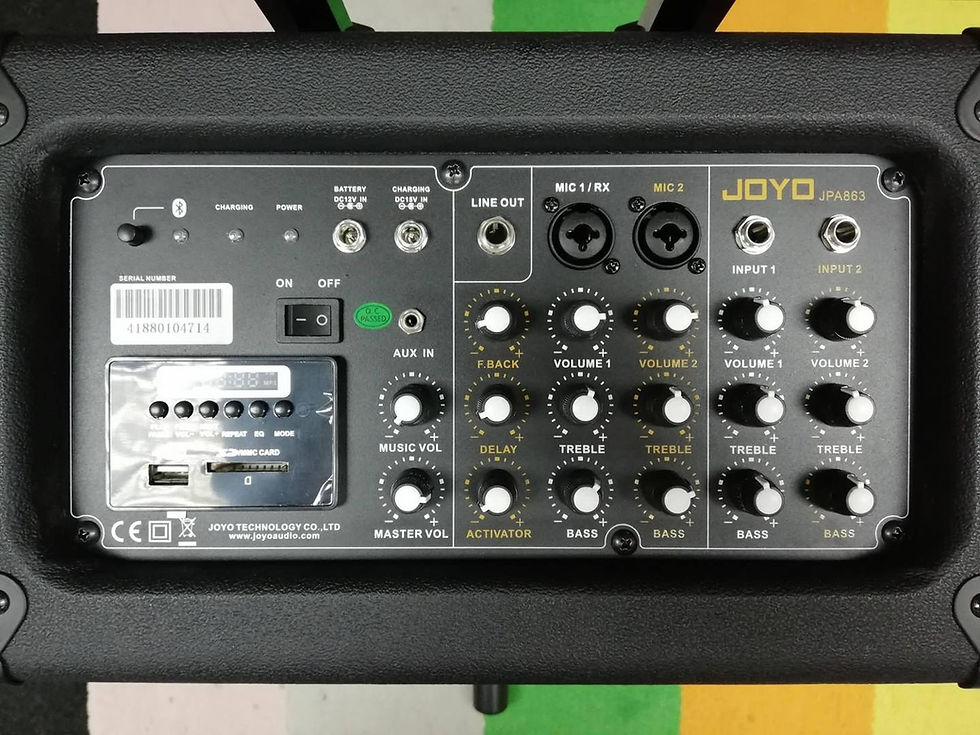

Line out / Bluetooth/ Usb/ SD card/ Aux in with volume


可以拖拉 及每邊雙輪輪設計 Speaker 孔

Mic effects (delay, reverb)獨立EQ


- -863 vs Roland cube : 去片(LINK) - -


JPA863 features a dual channel Class D power amplifier chip, with output power of 30W(RMS).The Class D power amplifier chip is characterized by high efficiency and energysaving,and therefore enhance battery's durability.

JPA863 includes one matched 10'' 4Ohm speaker and one 3'' 4Ohm speaker. With a built-in leadacid battery, ensuring lightweight and portable and thus suitable for different occasions. Perfect for small venues such as club, home and studio. It also features Aux In and Player functions, together with the Bluetooth function, it will be your best companion.
JPA863's wireless microphone section, using VHF200-270MHz frequency range, is designed with crystal oscillator circuit, which ensures high frequency stability and anti-interference.


Main Unit
Frequency Response: 50Hz---18 kHz
Actual Power: 30W (RMS)
Sensitivity: 95dB (1W/1M)
Speaker Impedance: 10" 4 Ohm; 3" 4 Ohm
Power adapter: AC in 100-240V 50/60Hz
        DC Out 15V/4A
DC Voltage: 12V 7.0Ah (Lead-acid battery)
Maximum Current Consumption: 3.5A
Net Weight: 14.1kg
Dimensions: 360*245*520mm

Input Sensitivity
Guitar Input 1: -20dBu
Guitar Input 2:-20dBu
MIC1: -40dBu
MIC2: -40dBu

Overall performance
Carrier Frequency: VHF200-270MHz
Harmonic Distortion: <0.8%
Frequency Stability: <±20PPM
Dynamic Range: >80dB
Frequency Response: 60Hz---12kHz ±3dB
Audio Output: 0~±400mV
Temperature Range: -10℃~+50℃
Operating Distance: 50 meters

Wireless microphone
Frequency Stability: 0.05%(20PPM)
Launching Power: +13dB
Modulation Type: FM
Maximum Modulation Index: ±20kHz
Upper Harmonics: less than dominant wave 60dB
Mains Voltage: 9V Layer-built battery
Hours of use: 10hrs

Built-in wireless microphone receiver
Pseudo Image Interference Ratio: >70dB
Consuming Power: 3W
Signal-to-Noise Ratio: 80dB
Adjacent Channel Interference Ratio: >70dB
Receiving Sensitivity: 12dB
De emphasis: 50US
